URGENT-Hot Water Tank
Greg Geissunger
10/24/2025 9:09 AM

My Immersion hot water tank element has burned out, currently in AYB Norfolk. Any suggestions would be a great help.

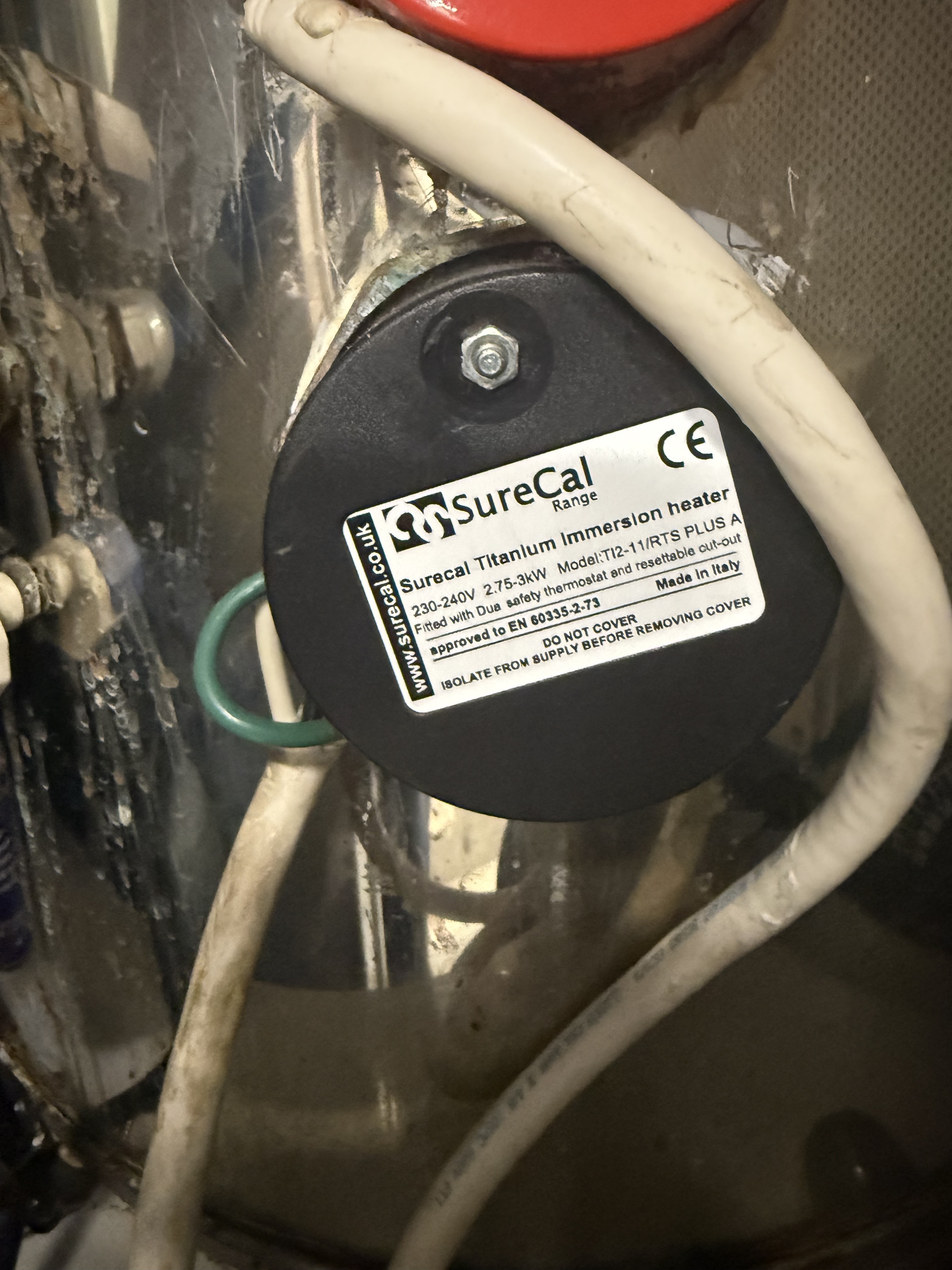

Showing as a SureCal Titanium Immersion Heater 230-240 volt 2.75 to 3kw

Model T12-11/RTS Plus A


Greg Summer Dreams 55-63

Richard Nye
10/24/2025 9:35 AM
Greg,
Best to go on their website to see how to get a new one.  Or at least call them up and get advice.  I would think that a residential heater element would work, but best to ask them.

Richard

Greg Geissunger
10/24/2025 9:57 AM
Hi Richard,

Only sites I am seeing are in the UK hence the frustration, Was hoping someone else could direct me to a USA Supplier that they have dealt with in the past


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Steve Sipe
10/24/2025 10:55 AM
From the photo you posted, it appears that there's a thermal limit incorporated, have you confirmed that the element is actually open and the limit has not tripped? Some of these devices utilize a resettable limit, sometimes a fusible link, or both. I'd want to pull the cover and investigate. Some basic research indicates that these are euro parts and may not be readily available domestically. A thermostat or fusible link might be possible to work around, but the element probably requires an OEM replacement. The manufacturer may be able to provide information on a US parts source.
A pic of what's under the cover may help some.

Steve Sipe
ex4303

Greg Geissunger
10/24/2025 2:41 PM

Hi Steve,

The thermostat has a reset, working, heating coil not working

Steve Sipe
10/24/2025 4:07 PM
From the information I could find, it appears that the element is not a typical domestic COTS element. Nothing familiar to me (30 yrs in the Plbg/HVAC business). I 2nd the recommendation to contact the manufacturer for help. Perhaps they have a US supplier.
Good luck.
Steve Sipe
ex4304

Greg Geissunger
10/24/2025 4:35 PM
Hi Steve,

2 hours of searches, will try calling them on Monday given the weekend and time change.

Thanks


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Mark Tilden
10/24/2025 11:55 AM
Greg:

When you say your "immersion hot water tank", I assume you are referring to a domestic hot water heater. Correct? I'm a bit surprised because most of the Selenes I've seen have Torrid water heaters that are made just a few miles from my home in Washington State.

Is there any other manufacturer/model information for the water heater itself?

Mark


Greg Geissunger
10/24/2025 2:47 PM

Hi Mark,


No manufacturer info on the tank from what I can see. I have attached a couple of more pic's so you have a better understanding of what I am dealing with as it is not your everyday heating element, check out that nut size

Mark Tilden
10/24/2025 2:59 PM
Greg:

Wow.....yes.....that is different. Are you guys the original owners? I wonder if JTM has any record of the water heater that was installed in that boat. It looks vaguely similar to the Torrid heaters they usually use, but enough different that I'm pretty sure it's not one of theirs.....

So, did I understand your note back to Steve to suggest that you did find a reset and it's not tripped, but the element is still open (i.e. not heating). You can always use an ohmmeter across the element to see if it's open (obviously with power turned off and at least one side disconnected completely).

Mark


Greg Geissunger
10/24/2025 3:15 PM
Mark,

We are not the original owners, we are the 3rd, I believe I know what I need. I found a boat manufacturer in the USA that uses these but not owning their boat they refused to sell me one lol.

Yes I used an ohmmeter and the circuit is open.


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Mark Tilden
10/24/2025 4:41 PM
Greg:

Did the boat manufacturer tell you who made the water heater?

Keep us posted on what you find. You *may* be the only Selene out there with this water heater, but that's not terribly likely.

At some point, when you have more time and want a sad story, I'll tell the story of replacing my water heater. I probably posted some about in on the forum when I did it. It was a very painful experience!

Mark




On Fri, Oct 24, 2025 at 1:16 PM Public Discussion Forum <forum@seleneowners.org> wrote:
Posted by: Greg F Geissinger on 10/24/2025 at 3:15 PM
View/reply online
Reply to forum at forum@seleneowners.org
Reply directly to Greg F Geissinger at greg@pacificrimfp.com
If this message contains inappropriate content, you can report the message online
Mark,

We are not the original owners, we are the 3rd, I believe I know what I need. I found a boat manufacturer in the USA that uses these but not owning their boat they refused to sell me one lol.

Yes I used an ohmmeter and the circuit is open.


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Greg Geissunger
10/24/2025 4:49 PM
Mark,

I’m hoping I don’t have to replace it. The good news is, if you look at the photo, it has two elements — one 220/230 V and the other 120 V, which runs off my inverter, so I still have hot water. The Admiral is away, so I need to deal with this or at least find a solution before she returns.


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Garry Ball
10/24/2025 7:55 PM
Hi Greg
Those photos definitely look like UK style immersion heaters.
The large nut is typical and the body usually holds the replaceable thermostat as well as the element so there is only one cable to connect  - though you can always have a separate thermostat just as you have.
I have never seen a 120v immersion heater, they are all 240v
Here is a link to a big box store. They probably won’t ship to the US but you can see what’s available


I have no idea why the element is titanium. Inconel alloy is the standard and I don’t see why it wouldn’t be enough for fresh water heating - these things can last 20 years with no maintenance.
 I’d go for an unvented model heater as you have a pressure releaf valve and the system is always under pump pressure rather than gravity fed as many are in the older uk houses

Good luck

Sent from my iPhone
GarryBall
4333

Greg Geissunger
10/26/2025 4:18 PM
I believe I may have solved the  supply issue, cross my fingers
Stay tuned more to tell


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Doug Dance
10/26/2025 5:27 PM

Greg,

I believe that you may have a Solaris hot water heater. I have one on Peregrine that was sourced from Marine Tec USA located in Anacortes, Washington 360.588.1800. I replaced the 120VAC element and was able to order it from Marine Tec. As you noted, it takes a large socket to remove the element. More recently, the thermostat on the 240vac element had contacts that burned out. It was an easy replacement without removing the entire element.

Jack Burgess
10/26/2025 6:14 PM

Greg - I am in Solomons, MD now and have access to everything, but time for nothing. If I can help in any way, sourcing, purchasing, delivering, let me know. Brother Jim picks me up here and delivers me to home, you know where, on the Potomac close to where you are. Let me know if I can help.


Jack


Jack Burgess, Shangri-La 5388 & 6047

Greg Geissunger
10/31/2025 8:04 AM
Thanks Jack!

I’ve got everything sorted out, the hot water tank and diesel heater are all in one system. I was able to get in touch with Marine Tec in the PNW through another Selene owner who saw my post. I’m now just waiting for the part to arrive.


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Jack Burgess
11/1/2025 6:47 PM

Glad you got it sorted Greg.


Good news here also - We are in VCU Hospital in Richmond where Terry is recovering from bilateral knee replacement surgery early Thursday morning. Complex surgery and only second time in 2025 it was done at this busy teaching hospital. She got on her feet yesterday and walked three times today with a walker, impressing all the MD’s, RN’s, PT’s, OT’s and Aides. Tough Lady! Thank God for narcotics! But I am getting cranky - three nights on a couch in her room for one who deserves “Prince and the Pea” treatment is about all I can stand. I need my king size bed and the river sounds outside my window, not I-95 traffic!


Couple of pics of T and new toy for new boat attached.


Best - Jack



Jack Burgess, Shangri-La 5388

David Durham
11/1/2025 9:59 PM
Glad Terry's surgery went well, Jack. Sorry she has to put up with your crankiness over your sub-standard sleeping arrangements!
Give her our best.
David and Anne Marie
Sent from my iPhone

Greg Geissunger
11/2/2025 8:25 AM
Jack,

Your wife is such a trooper having to put up with you and now having to replace her joints from chasing you around all over the place.

PS nice toy!


Greg Geissinger

Pacific Rim A Group Of Companies
Unit 178 - Building 800
15355 - 24th Ave
V4A 2H9
South Surrey, BC
Tel:  604-328-1455


Jack Burgess
11/2/2025 5:37 PM
She is doing this so that she can catch me next time!  I will likely get mine done just to stay out of her grasp.  But might have to jump on the moto.

Jack
